Water Resistant Single Mode Optical Fiber JET Cable Fiber Optic Outdoor Cable

Brand Name : hanxin

Model Number : SM MM

Certification : CE ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 400km/day

Delivery Time : 3-10working days according to the qty

Packaging Details : yarn-beam and carton

Cable Diameter : 4.2mm-5.6mm

TBF Diameter : 900±50μm

Standard : YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc;

Fiber Count : 2-48cores

Tensile Strength : 60/150

Crush Resistance : 300/1000

Contact Now



Water Resistant Single Mode Optical Fiber JET Cable Fiber Optic Outdoor Cable



Description

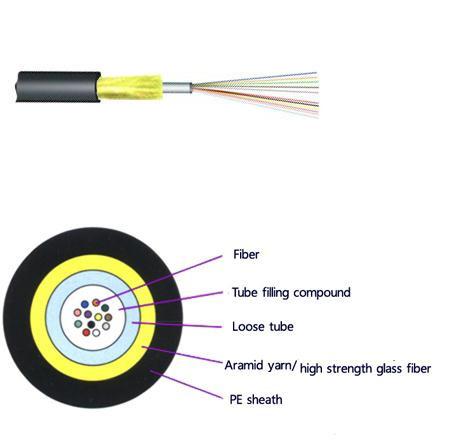

The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.



Characteristics



· Non-mental design can prevent the cable from radio interference and magnetic wave interference
· Specially designed compact structure is good at preventing loose tubes from shrinking
· Aramid yarn ensures good performance of tensile strength
· Loose tube filling compound ensure good moisture resistance performance
· Good flexibility
· High dense fiber packed, small diameter and light weight; it's the better option for blowing
installation process



Application



Adopted to backbone network, access network and fiber to the home.



Optical Characteristics




G.652		 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm



Technical Parameters



Cable Type Fiber Count

Cable Diameter

mm

 Cable Weight kg/km

Tensile Strength



Long/Short Term N

Crush Resistance



Long/Short Term

N/100mm

Bending Radius



Static
/Dynamic

mm
JET 2~12 2~12 4.2±0.3 12 60/150 300/1000 10D/20D
JET 14~24 14~24 4.6±0.3 15 60/150 300/1000 10D/20D
JET 26~36 26~36 5.1±0.3 18 60/150 300/1000 10D/20D
JET 38~48 38~48 5.6±0.3 22 60/150 300/1000 10D/20D
